Description

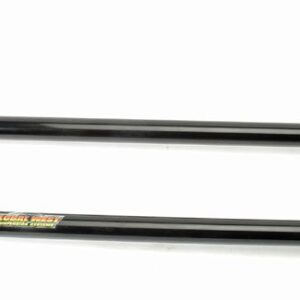

No cutting or modification of floor pans are required. The subframe connectors are full length. This means the subframe connector is going to the back of the factory subframe and extend to the rear structural support rail going over the differential.
- Subframes are powder coated black
- Subframes are made from 1 5/8 x 0.125 wall DOM tubing
- Additional hardware and plates are supplied.
- No exhaust modifications are required.
- Minimal ground clearance lost (in most cases the exhaust is lower)
Product Information
The subframe connector is welded to the uni-body portion of the chassis, not bolted and do not attach to the leaf spring front bracket bolts. Those bolts are 3/8 of an inch in diameter and are held in place with small nut clips and will not hold up.
The subframe connector sandwiches between the factory frame and the body. It can be bolted or welded. Welding is always the best, but in this case it is not as practical. If the car is in a collision, the frame needs to be replaced by unbolting the subframe: bolting to the original frame works because the material of the factory frame is 3/16” thick, all the sides are being bolted. Interloc body mount bushings should be used if subframes are installed.
1970-1973 Camaro & Firebird Subframe Connectors with Complete Body Mount Kit
Quality and performance come together in our 1970-1973 Camaro and Firebird Subframe Connectors. Crafted from robust 1 5/8 x 0.125 wall DOM tubing and finished with a durable powder coat, these connectors are built to withstand the rigors of both street and track driving. Our commitment to customer satisfaction means that you’re never alone in your installation journey; our dedicated support team is just a call or message away, ready to assist you with any questions or concerns. To make the installation process as smooth as possible, we provide comprehensive instruction sheets and detailed video tutorials that guide you step-by-step. Whether you’re enhancing your classic Camaro or Firebird, you can trust that our products are designed to deliver exceptional value and performance. Explore more options in our Chevrolet car parts section, or check out our 1970-81 Camaro Parts and Camaro Subframe Bushings for additional upgrades.
