1/2" Front Spacers - 1973-87 Grand National, GS, Regal, Grand Prix, Cutlass/ 1971-96 Impala/ 1970-92 Camaro, Firebird/ 1975-79 Nova, Ventura, Omega/ 1973-88 Chevelle/ 1979-88 El Camino/ 1973-82 Lemans-Sold Individually- part #1703


Sway Bars, Shocks, Springs and Coil Over Kits
1/2" Front Spacers - 1973-87 Grand National, GS, Regal, Grand Prix, Cutlass/ 1971-96 Impala/ 1970-92 Camaro, Firebird/ 1975-79 Nova, Ventura, Omega/ 1973-88 Chevelle/ 1979-88 El Camino/ 1973-82 Lemans-Sold Individually- part #1703
1/2" Front Coil Spring Spacers = 1" Lift (Aluminum) Coil Spring Spacers are used to raise the vehicle up if its too low, leveling it, and for weight jacking if the car is being raced. For most applications, coil sprig spacers are installed under the coil spring between the coil and the lower control arm. Some are installed on top of the coil spring between it and the frame. We offer three styles of spacers: Aluminum, Polyurethane, and Rubber. The applications determine which is available. Selecting a coil spring spacer for the front end has a simple formula you must remember, one-inch at the spring equals two-inches at the body. This applies to all Ford and GM models we deal with. Example 1: Lets say you want to raise your 1969 Camaro one-inch in the front. You would purchase two 1/2-inch spacers; one for each side. They install between the lower arm and spring. Your ride height will go up one full inch. Example 2: Lets say you want to raise the front of your GTO 1-1/2 inches because you cut to much off the spring. Using the formula one at the spring is two at the body, a 3/4-inch spacer is required to lift the front end up 1-1/2 inches. Ford works the same way. Rear spring spacers are available in polyurethane or aluminum. All of the rear spacers that raise the vehicle are made out of aluminum. Polyurethane is used for replacing the factory spring cushion. The formula for the rear GM models is one to one. Therefore if you want to raise the car 3/4 of an inch, use a 3/4 inch spacer.
https://www.globalwest.net1703.html
$23.20
1/2
Click to Enlarge

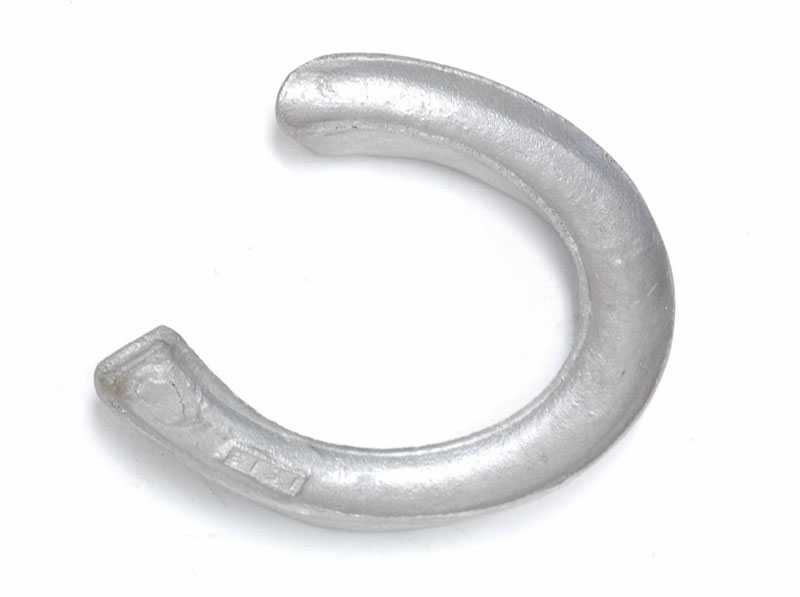

1/2" Front Coil Spring Spacers = 1" Lift (Aluminum)

Coil Spring Spacers are used to raise the vehicle up if its too low, leveling it, and for weight jacking if the car is being raced. For most applications, coil sprig spacers are installed under the coil spring between the coil and the lower control arm. Some are installed on top of the coil spring between it and the frame. We offer three styles of spacers: Aluminum, Polyurethane, and Rubber. The applications determine which is available.

Selecting a coil spring spacer for the front end has a simple formula you must remember, one-inch at the spring equals two-inches at the body. This applies to all Ford and GM models we deal with. Example 1: Lets say you want to raise your 1969 Camaro one-inch in the front. You would purchase two 1/2-inch spacers; one for each side. They install between the lower arm and spring. Your ride height will go up one full inch. Example 2: Lets say you want to raise the front of your GTO 1-1/2 inches because you cut to much off the spring. Using the formula one at the spring is two at the body, a 3/4-inch spacer is required to lift the front end up 1-1/2 inches. Ford works the same way.

Rear spring spacers are available in polyurethane or aluminum. All of the rear spacers that raise the vehicle are made out of aluminum. Polyurethane is used for replacing the factory spring cushion. The formula for the rear GM models is one to one. Therefore if you want to raise the car 3/4 of an inch, use a 3/4 inch spacer.
$23.20
Applications:
Qty:
1/2" Front Spacers - 1973-87 Grand National, GS, Regal, Grand Prix, Cutlass/ 1971-96 Impala/ 1970-92 Camaro, Firebird/ 1975-79 Nova, Ventura, Omega/ 1973-88 Chevelle/ 1979-88 El Camino/ 1973-82 Lemans-Sold Individually- part #1703
Item #:1703
Availability:
View Shipping Policy
Only:$23.20
Applications:
Quantity:


Product Description
1/2" Front Coil Spring Spacers = 1" Lift (Aluminum)

Coil Spring Spacers are used to raise the vehicle up if its too low, leveling it, and for weight jacking if the car is being raced. For most applications, coil sprig spacers are installed under the coil spring between the coil and the lower control arm. Some are installed on top of the coil spring between it and the frame. We offer three styles of spacers: Aluminum, Polyurethane, and Rubber. The applications determine which is available.

Selecting a coil spring spacer for the front end has a simple formula you must remember, one-inch at the spring equals two-inches at the body. This applies to all Ford and GM models we deal with. Example 1: Lets say you want to raise your 1969 Camaro one-inch in the front. You would purchase two 1/2-inch spacers; one for each side. They install between the lower arm and spring. Your ride height will go up one full inch. Example 2: Lets say you want to raise the front of your GTO 1-1/2 inches because you cut to much off the spring. Using the formula one at the spring is two at the body, a 3/4-inch spacer is required to lift the front end up 1-1/2 inches. Ford works the same way.

Rear spring spacers are available in polyurethane or aluminum. All of the rear spacers that raise the vehicle are made out of aluminum. Polyurethane is used for replacing the factory spring cushion. The formula for the rear GM models is one to one. Therefore if you want to raise the car 3/4 of an inch, use a 3/4 inch spacer.
